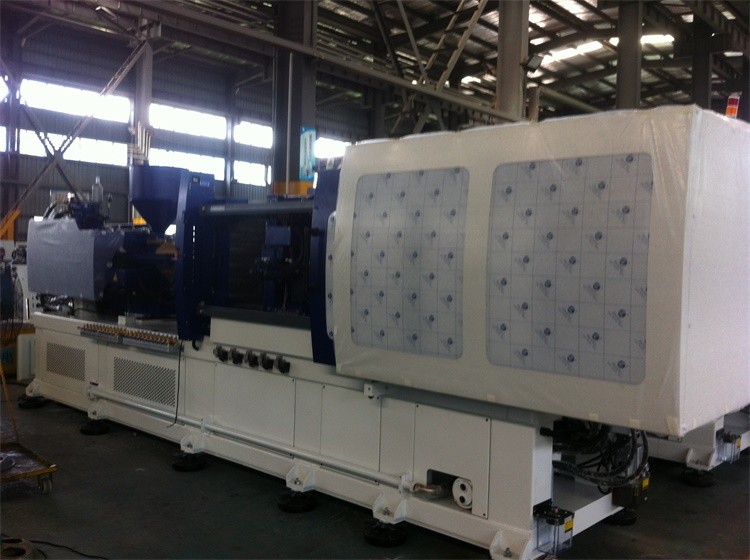

CST470-Ⅰ/2800 injection molding machine

Name: CST470-Ⅰ/2800 injection molding machine
Brand: COSTAR
SKU: 18195414
Rating: 4.75 (10 reviews)

Categories	Production injection molding machine
Brand	COSTAR
Model	CST470-Ⅰ/2800
Condition	New
Type	Preform Injection
Automatic	Yes
Style	Horizontal
Warranty	1 year
color	any color client require
Download
Update Time	Dec 26,2024

Detail Information

omega 298 ton pvc pipe fitting of horizontal injection molding machine

		CST470-Ⅰ/2800
		a	B	c
Injection Unit
Screw diameter	mm	70	75	80
Screw L/D ratio	L/D	21.4	20	18.8
Injection capacity in theory	cm³	1423	1634	1859
Injection weight(ps)	g	1295	1500	1692
Injection weight(ps)	oz	45.6	52.4	59.6
Injection pressure	MPa	199	173	152
Injection rate	g/s	366	395	446
Plasticizing capacity	g/s	60	65	70
Screw speed	rpm	160
Clamping Unit
Clamping force	kN	4700
Moving mould-plate stroke	mm	780
Max.Mould height	mm	820
Min.Mould height	mm	300
Space between tie-bars	mm	820x770
Hydraulic ejector force	kN	120
Hydraulic ejector stroke	mm	200
Ejector number	n	13
Other
Pump pressure	MPa	16
Motor/Driving power	kW	37/30+23
Heating capacity	kW	23.15
Machine dimension	m	7.85 x 1.89x2.4
Machine weight	t	16.2
Oil tank capacity	L	687

Supply Ability

Supply Ability: 400 Set/Sets per Month

Packaging & Delivery

Packaging Details : Wooded pallet package, standard ocean shipping package of injection molding moulding machine

Port : Shanghai Port/Ningbo Port

Lead time: 30-45day

Machine Feature

1 Enhanced clamping mechanism to meet requirements for efficient production.

2 Excellent clamping features with optimized linkage mechanism to have faster and smooth operation.

3 Professional plasticizing unit is applicable for production of various raw materials, and to improve plasticize performance significantly.

4 Excellent injection performance with twin-cylinder injection mode, have more reliable and stable performance.

5 Professional platen optimization, the platen after finite element analysis and optimization has high rigidity and strength.

6 Centralized lubrication system with reliable protective configuration, quantitative distribution and centered lubrication,

provide more professional lubrication protection and extend mechanical life.

7 New frame type structure, simple and clean appearance, with more reasonable stress on machine body and high rigidity.
