CST158/560 injection molding machine

Name: CST158/560 injection molding machine
Brand: COSTAR
SKU: 18195407
Rating: 4.75 (10 reviews)

Categories	Production injection molding machine
Brand	COSTAR
Model	CST158/560
Condition	New
Type	Preform Injection
Automatic	Yes
Style	Horizontal
Warranty	1 year
color	any color client require
Download
Update Time	Nov 24,2024

Detail Information

158 ton pet perform plastic bobbin injection molding machine price

		CST158/560
		A		B		C		D
Injection Unit
Screw diameter	mm		38		42		45		48
Screw L/D ratio	L/D		24.3		22		20.5		19.2
Injection capacity in theory	cm3		226		277		318		361
Injection weight(ps)	g		206		252		289		328
	oz		7.2		8.8		10.1		11.5
Injection pressure	MPa		248		203		177		155
Injection rate	g/s		100		126		144		163
Plasticizing capacity	g/s		13		15		20		24
Screw speed	rpm		200
Clamping Unit
Clamping force	kN		1580
Moving mould-plate stroke	mm		400
Max.Mould height	mm		500
Min.Mould height	mm		150
Space between tie-bars	mm		460x410
Hydraulic ejector force	kN		53
Hydraulic ejector stroke	mm		130
Ejector number	n		5
Other
Pump pressure	MPa		16
Motor/Driving power	kW		15/18.5
Heating capacity	kW		10.95
Machine dimension	m		5.0 x 1.23 x 1.975
Machine weight	t		4.3
Oil tank capacity	L		253

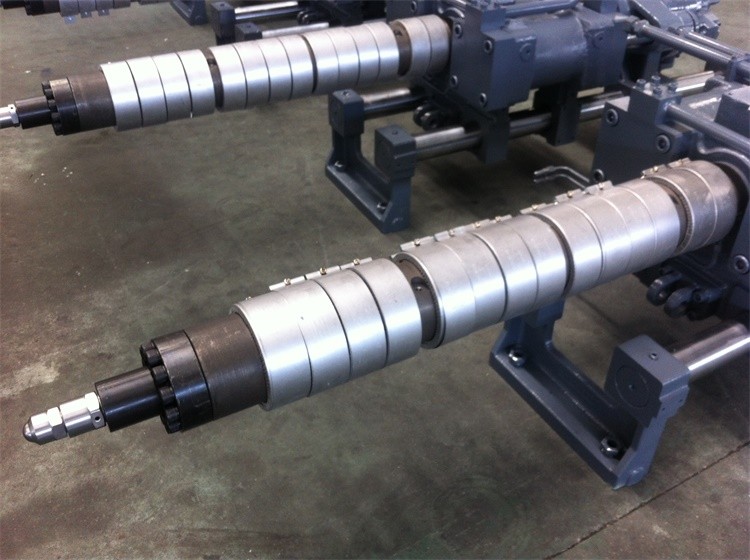

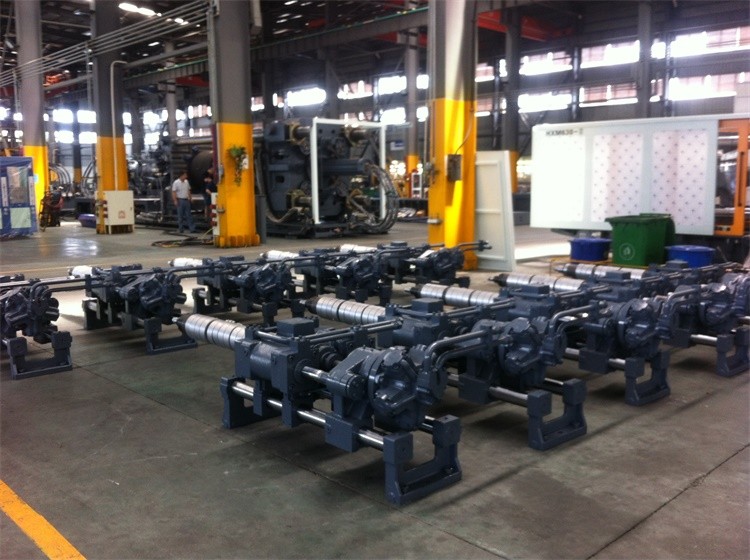

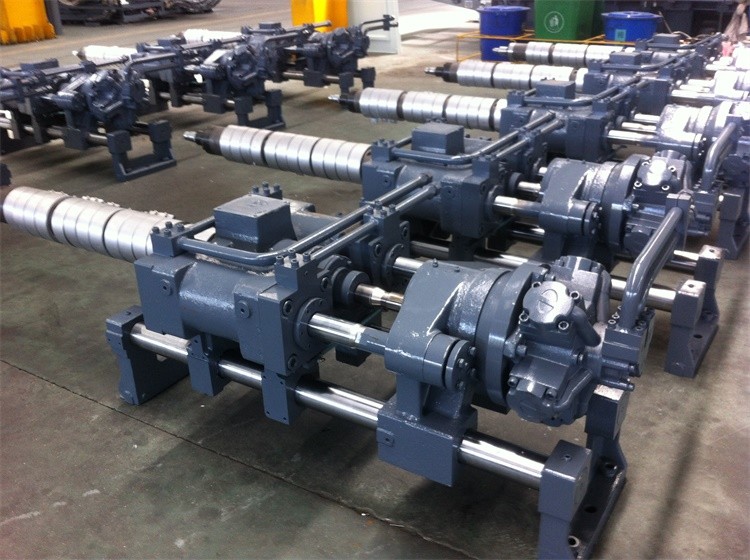

Parts show

Supply Ability

Supply Ability: 400 Set/Sets per Month

Packaging & Delivery

Packaging Details : Set 158 ton pet perform plastic bobbin injection molding machine price of Wooded pallet package,

standard ocean shipping package of injection molding machine

Port : Shanghai Port/Ningbo Port

Machine Feature

1 Enhanced clamping mechanism to meet requirements for efficient production.

2 Excellent clamping features with optimized linkage mechanism to have faster and smooth operation.

3 Professional plasticizing unit is applicable for production of various raw materials, and to improve plasticize performance significantly.

4 Excellent injection performance with twin-cylinder injection mode, have more reliable and stable performance.

5 Professional platen optimization, the platen after finite element analysis and optimization has high rigidity and strength.

6 Centralized lubrication system with reliable protective configuration, quantitative distribution and centered lubrication,

provide more professional lubrication protection and extend mechanical life.

7 New frame type structure, simple and clean appearance, with more reasonable stress on machine body and high rigidity.
