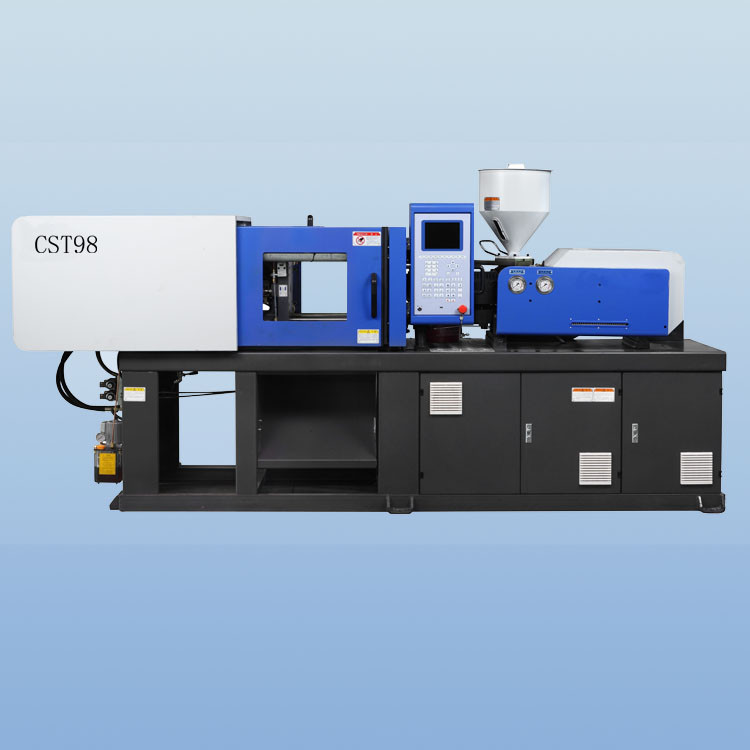

Costar 98 ton horizontal injection molding machine

Name: Costar 98 ton horizontal injection molding machine
Brand: COSTAR
SKU: 18195263
Rating: 4.75 (10 reviews)

Categories	Production injection molding machine
Brand	COSTAR
Model	Costar 98 ton
Condition	New
Type	Preform Injection
Automatic	Yes
Style	Horizontal
Warranty	1 year
color	any color client require
Download
Update Time	Nov 24,2024

Detail Information

omega 298 ton pvc pipe fitting of horizontal injection molding machine

		CST98/330
		A	B	c	d
Injection Unit
Screw diameter	mm	32	35	38	40
Screw L/D ratio	L/D	24	22	20.2	19.2
Injection capacity in theory	cm³	128	154	181	200
Injection weight(ps)	g	116	140	164	182
	oz	4.0	4.9	5.7	6.4
Injection pressure	MPa	262	219	185	168
Injection rate	g/s	71	85	101	111
Plasticizing capacity	g/s	10	11	13	17
Screw speed	rpm	200
Clamping Unit
Clamping force	kN	980
Moving mould-plate stroke	mm	315
Max.Mould height	mm	390
Min.Mould height	mm	150
Space between tie-bars	mm	360x340
Hydraulic ejector force	kN	45
Hydraulic ejector stroke	mm	100
Ejector number	n	5
Other
Pump pressure	MPa	16
Motor/Driving power	kW	11/11
Heating capacity	kW	8.2
Machine dimension	m	4.16x 1.15x 1.82
Machine weight	t	2.7
Oil tank capacity	L	203

Supply Ability

Supply Ability: 400 Set/Sets per Month

Packaging & Delivery

Packaging Details : Wooded pallet package, standard ocean shipping package of injection molding moulding machine

Port : Shanghai Port/Ningbo Port

Lead time: 30-45 working days

Machine Feature

1 Enhanced clamping mechanism to meet requirements for efficient production.

2 Excellent clamping features with optimized linkage mechanism to have faster and smooth operation.

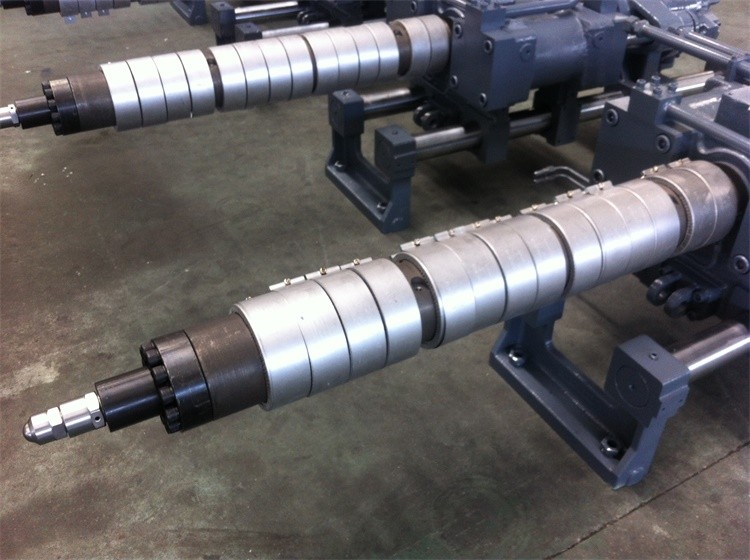

3 Professional plasticizing unit is applicable for production of various raw materials, and to improve plasticize performance significantly.

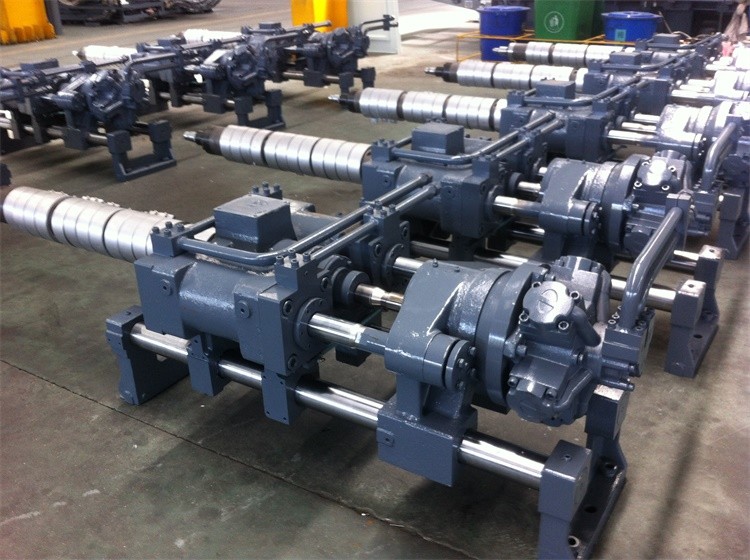

4 Excellent injection performance with twin-cylinder injection mode, have more reliable and stable performance.

5 Professional platen optimization, the platen after finite element analysis and optimization has high rigidity and strength.

6 Centralized lubrication system with reliable protective configuration, quantitative distribution and centered lubrication,

provide more professional lubrication protection and extend mechanical life.

7 New frame type structure, simple and clean appearance, with more reasonable stress on machine body and high rigidity.
